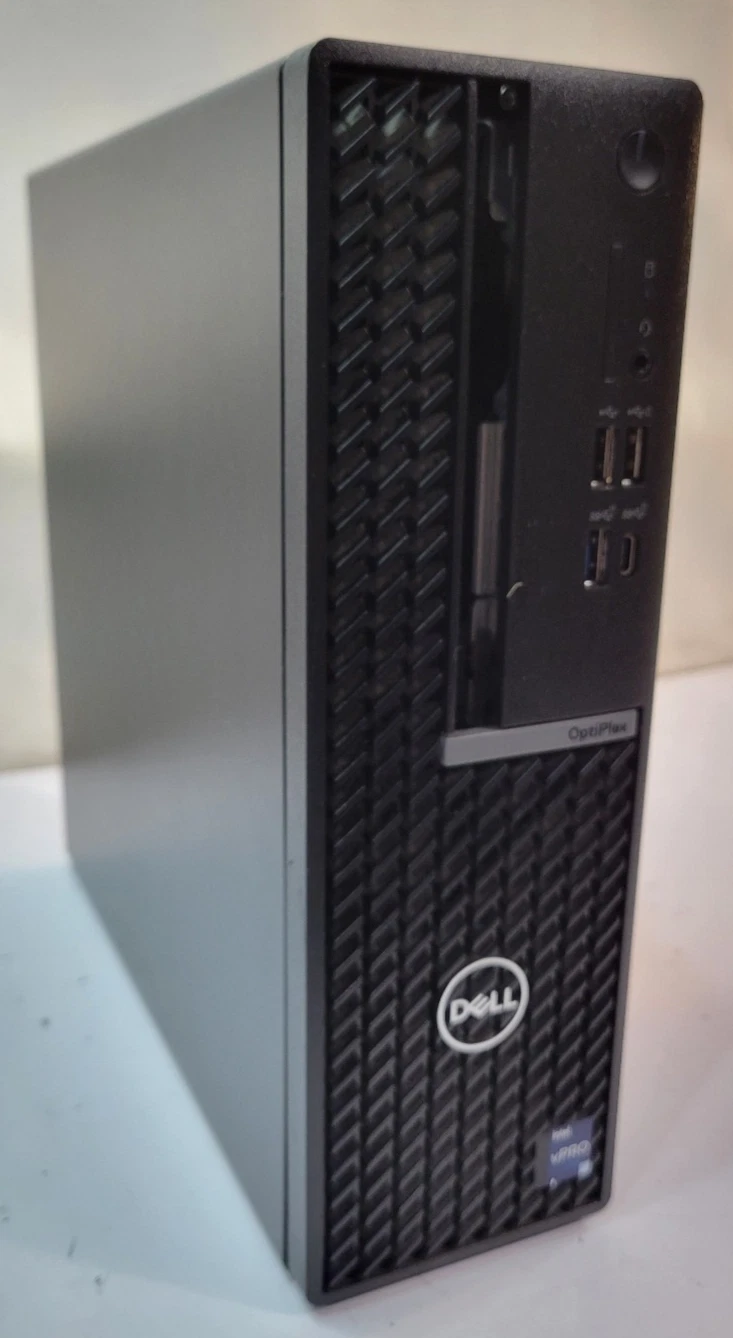

The Dell OptiPlex 7010 Plus SFF is the premium tier of the 2023–2024 desktop refresh. While the “Standard” 7010 SFF is built for basic tasks, the Plus model is designed for high-end enterprise workloads, featuring a more robust motherboard and significantly faster memory architecture.

Core Components

✅ Processors: 13th Generation Intel Core i3/i5/i7/i9 (up to 125W TDP support on certain configurations).

✅ Chipset: Intel Q670 (Enterprise vPro enabled).

✅ Memory Slots: 4 DIMM slots (Standard model only has 2).

✅ Memory Type: DDR5 Non-ECC.

✅ Memory Capacity: Up to 128 GB.

✅ Memory Speed: Up to 4400 MHz (Speeds may vary based on DIMM population).

✅ Integrated Graphics: Intel UHD Graphics 770 (Supports up to 4 displays natively).

Storage & Expansion

✅ M.2 Slots: 2 x M.2 2230/2280 slots for PCIe NVMe Gen4 SSDs (Plus model allows for dual-drive performance).

✅ SATA Bays: 1 x 3.5-inch HDD bay or 2 x 2.5-inch HDD/SSD.

✅ PCIe Slots: * 1 x Half-height PCIe x16 (Gen 4).

• ✅ 1 x Half-height PCIe x4 (Gen 3).

• ✅ Optical Drive: Optional slim 9.5mm DVD+/-RW.

I/O Ports

Front Panel

✅ 1 x USB 3.2 Gen 2×2 Type-C (20 Gbps) — High-speed data transfer.

✅ 1 x USB 3.2 Gen 2 Type-A (10 Gbps).

✅ 1 x USB 2.0 with PowerShare.

✅ 1 x USB 2.0.

✅ 1 x Universal Audio Jack.

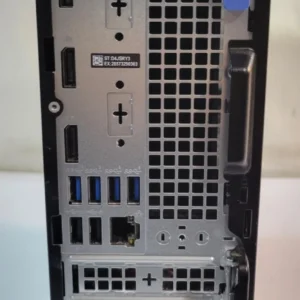

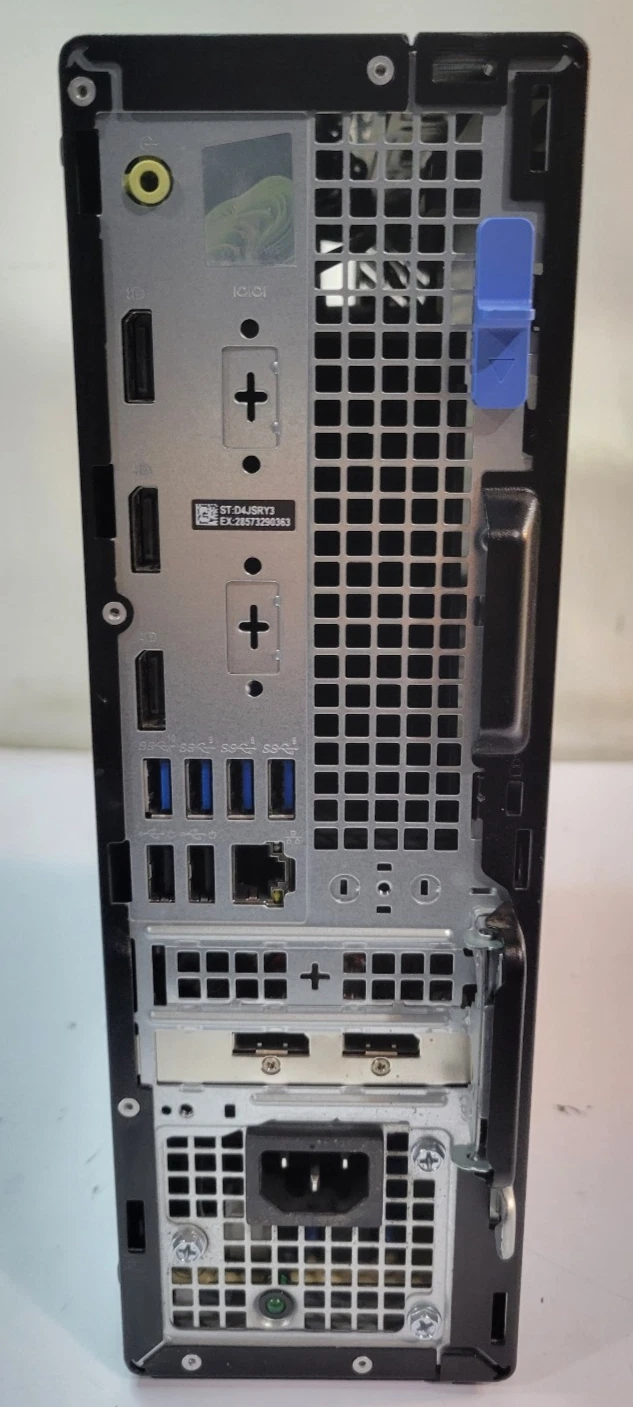

Rear Panel

✅ 3 x DisplayPort 1.4a (Standard 7010 only has one DP and one HDMI).

✅ 1 x USB 3.2 Gen 2 Type-A (10 Gbps).

✅ 3 x USB 3.2 Gen 1 Type-A (5 Gbps).

✅ 2 x USB 2.0 with Smart Power On.

✅ 1 x RJ-45 Ethernet (10/100/1000 Mbps).

✅ Optional Port: Can be configured with VGA, HDMI 2.1, or a 4th DisplayPort.
