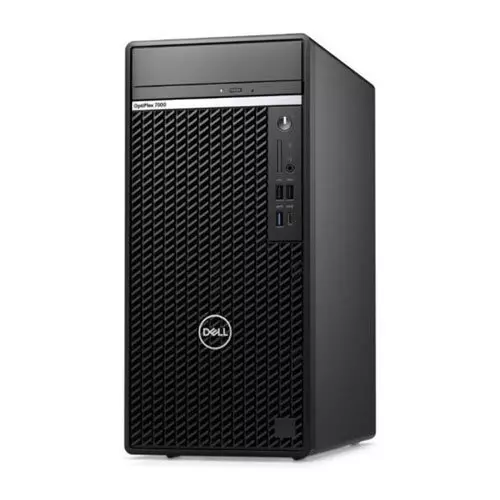

The Dell OptiPlex 7000 Tower represents the 12th Generation Intel era (2022–2023). It is the direct predecessor to the 7010 series and introduced many of the high-speed standards you now see in your more recent models.

Core Components

✅ Processors: 12th Generation Intel Core i3, i5, i7, and i9 (LGA1700). Supports up to 16 cores (i9-12900).

✅ Chipset: Intel Q670 (Enterprise vPro support).

✅ Memory Slots: 4 DIMM slots.

✅ Memory Type: DDR5 (up to 4400 MHz) or DDR4 (up to 3200 MHz) depending on the specific motherboard configuration.

✅ Memory Capacity: Up to 128 GB.

✅ Integrated Graphics: Intel UHD Graphics 730/770 (Supports up to 4 displays).

Storage & Expansion

✅ M.2 Slots: 3 x M.2 2230/2280 slots for PCIe NVMe SSDs (one Gen 3 and two Gen 4 slots).

✅ SATA Bays: 4 x SATA slots (for 3.5-inch or 2.5-inch drives).

✅ PCIe Slots: * 1 x Full-height PCIe x16 (Gen 4).

• 1 x Full-height PCIe x4 (Gen 3).

• 1 x Full-height PCIe x1 (Gen 3).

• 1 x Legacy PCI slot (Ideal for older industrial hardware).

I/O Ports

Front Panel

✅ 1 x USB 3.2 Gen 2×2 Type-C (20 Gbps).

✅ 1 x USB 3.2 Gen 2 Type-A (10 Gbps).

✅ 1 x USB 2.0 with PowerShare.

✅ 1 x USB 2.0.

✅ 1 x Universal Audio Jack.

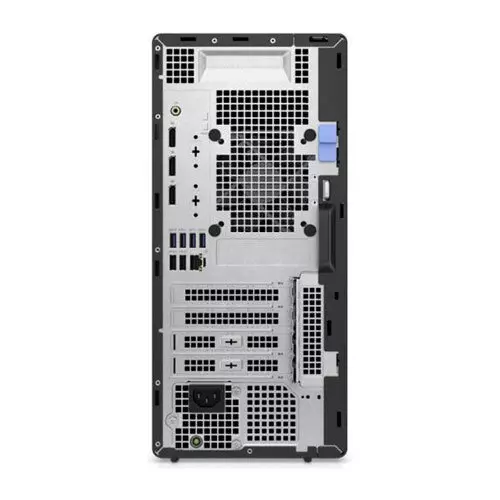

Rear Panel

✅ 3 x DisplayPort 1.4a.

✅ 1 x USB 3.2 Gen 2 Type-A.

✅ 3 x USB 3.2 Gen 1 Type-A.

✅ 2 x USB 2.0 with Smart Power On.

✅ 1 x RJ-45 Ethernet port (1 Gbps).

✅ Optional: Thunderbolt 4 Add-in Card (Unique to the 7000 Tower).
